Application:

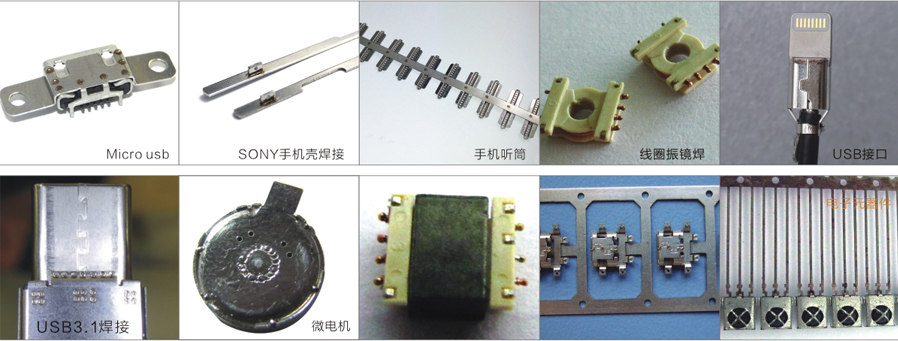

1. AoHua laser galvanometer laser welding machine is mainly applied in areas of high - speed welding, continuous welding and seal welding of relative products including mobile phone shield, metal cell phone enclosure, cellphone battery, phone shells, MP3, MP4 shells, micro motor, jewelry, circuit, sensors, watch, precise machinery, communication, handicraft, high - end cabinet, elevator accessories, high end furniture ,stainless jug and so on ,It is of high speed and accuracy.
2. Scanning laser welding machine system is suitable for the welding on titanium, nickel, tin, zinc, copper, aluminum, chrome, niobium, gold, silver, and their alloy. Also it is suitble for welding same materials like steel, kovar alloy, and different materials like copper - nickel, nickel - titanium, brass - copper, low carbon steel-copper.

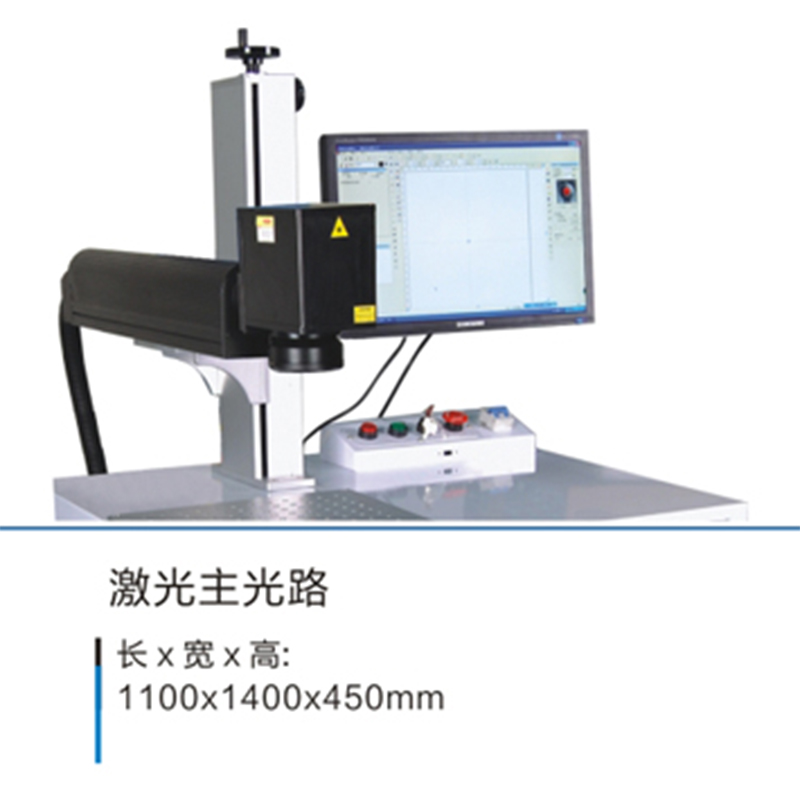

1.The highspeed scanning galvanometer is used to conduct laser positioning with the speed up to 7000mm/second.and the production efficiency is improved greatly.

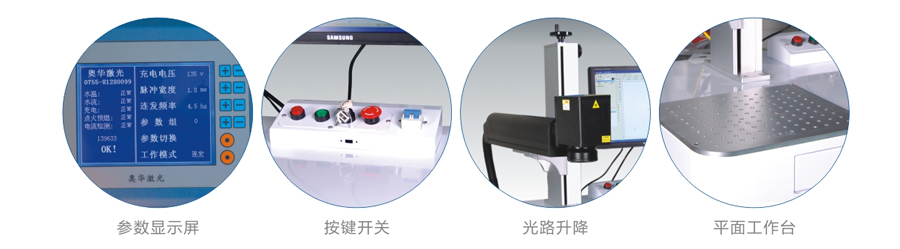

2.The digital galvanometer interface with strong anti-interface and better stability. The special control software with strong function which is easy to operate and compatible with a variety of formats of pic tures and letters.

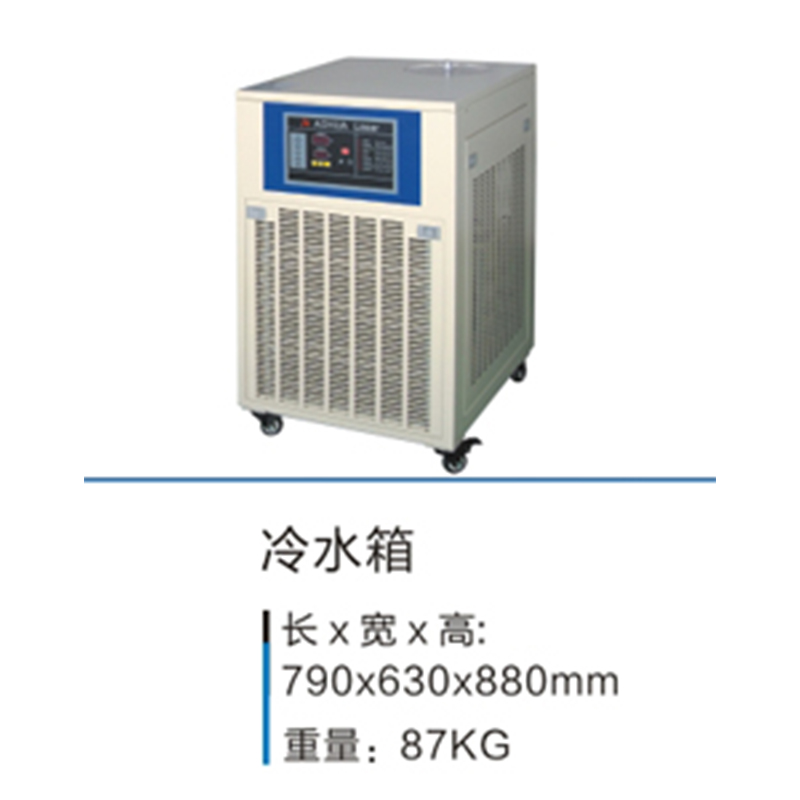

3.The high-power of cooling system ensures the continuous mass production.
4. Unique control computer system, multifuction, easy to operate, and can be compitable with verious image format.
Model | AHL-SW200 | AHL-SW400 | AHL-SW600 |
Max laser power | 200W | 400W | 600W |
Max monopulse power | 90J | 110J | 130J |
Laser wavelength | 1064nm | 1064nm | 1064nm |
Waveform quantity | 2 set | 2 set | 2 set |
Monopulse width | 0.3-20mm | 0.5-20mm | 0.3-20mm |
Laser frequency | 1-40HZ | 1-100HZ | 1-100HZ |
Facula size adjustable range | 0.2-2mm | 0.2-2mm | 0.2-2mm |
Positioning | Red light positioning | Red light positioning | Red light positioning |
Control system | Computer | ||
Positioning accuracy | ±0.05mm | ±0.05mm | ±0.05mm |
Fixed power | ≤9KW | ≤12KW | ≤16KW |
Electric demand | 220V±10%/50HZ/30A | 380V±10%/50HZ/40A | 380V±10%/50HZ/50A |
