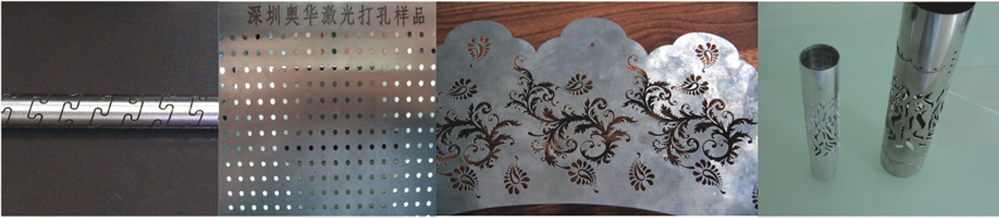

1. Suitable for cutting and perforating metal plates and pipes such as stainless steel, carbon steel, alloy steel, spring steel, aluminum, silver, copper, and titanium.
2. In the sheet metal and hardware industries, laser cutting and punching machines can partially replace punches and wire cutting. It can be used to make artistic characters, logos, medical treatment, equipment parts, saw blades, springs, etc.
The laser cutting and punching machine produced by Aohua Company is an automatic equipment designed by using laser technology and numerical control technology. It has the characteristics of high efficiency, low cost, safety and stability.
Index | Parameter |
Laser | 500W |
Cutting work range | 500*400mm |
Laser type | Imported/domestic optional fiber laser |
Laser wavelength | 1070nm±10nm |
Cutting material thickness | 0.1-3.0mm |
Cutting speed | 50000mm/min(Adjusted according to different cutting thickness) |
Laser head can be raised and lowered | 100mm |
Minimum cutting line width | 0.1mm |
Minimum positioning accuracy | 0.03mm |
File types supported by the software | Support AI, DXF, PLT, Gerber and other graphic data formats, and accept international standard G codes generated by Mater Cam, Type3, Wentai and other software |
Operating Voltage | 220V/50Hz/40A |
Total power | 3KW |
Transfer method | Ball screw drive |
Cooling method | Water cooling |
Focus mode | Follow-up auto focus |
Machine size | 1400*1100*1500mm |
