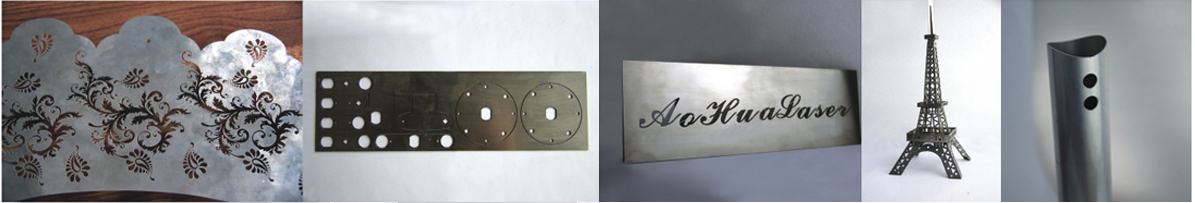

It is mainly used for cutting carbon steel, silicon steel, stainless steel, aluminum alloy, titanium alloy, galvanized sheet, pickling sheet, galvanized steel and other metal materials.
Used in sheet metal processing, aviation, aerospace, electronics, electrical appliances, subway accessories, automobiles, machinery, precision accessories, ships, metallurgical equipment, elevators, household appliances, craft gifts, tool processing, decoration, advertising, metal external processing, etc. manufacture.

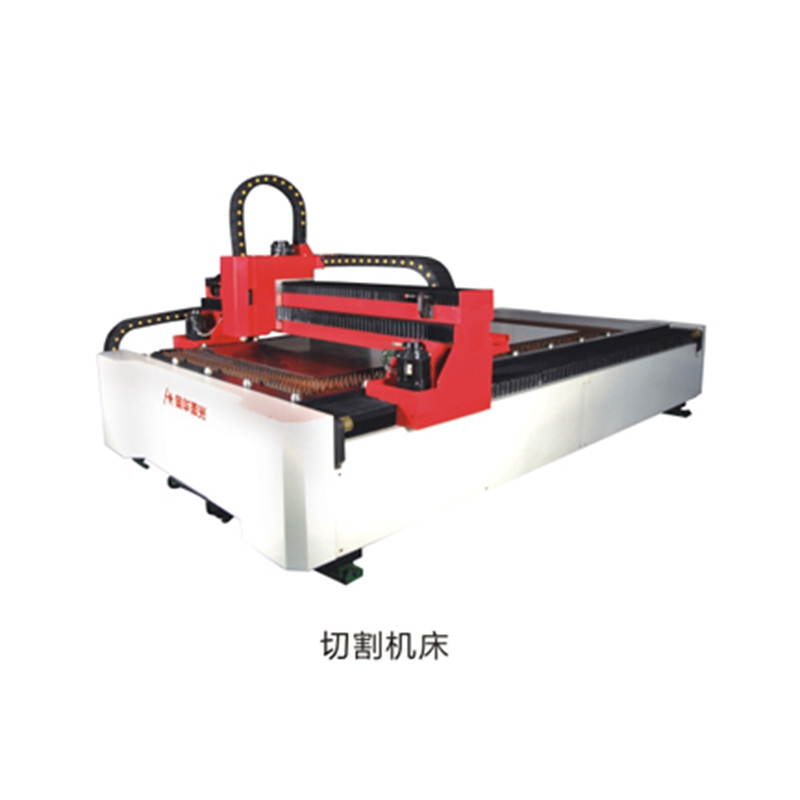

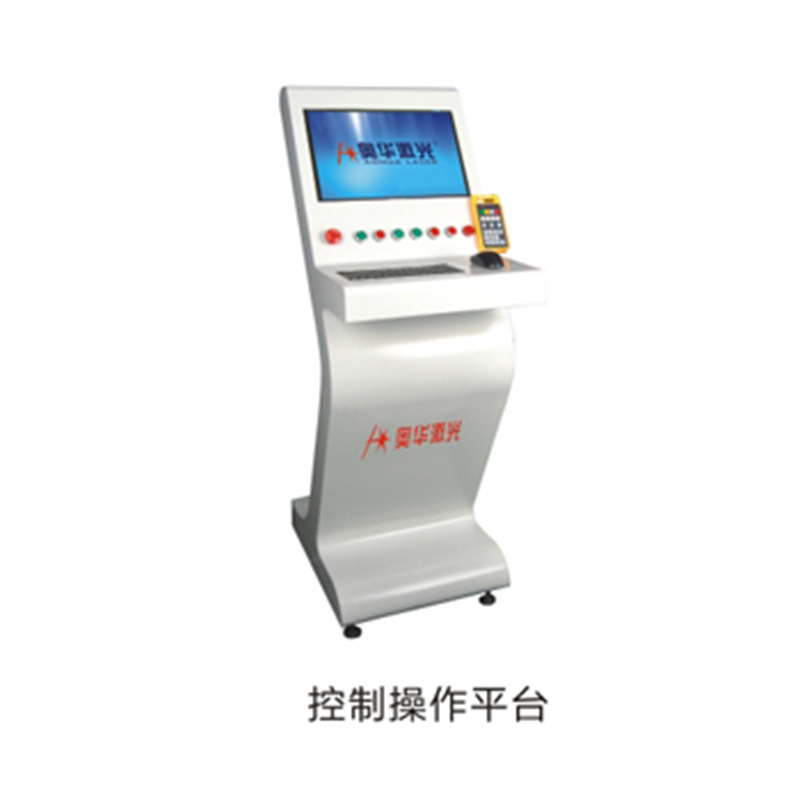

The whole adopts workpiece fixed, gantry mobile system; two-axis linkage, three-axis linkage CNC laser cutting machine, where X, Y axis linkage realizes plane cutting feed, Z axis floating tracking
The surface of the workpiece.
The three CNC axes are guided by rolling guide pairs, the X axis is driven by AC servo motor rack and pinion dual drive, the Y axis is driven by a servo motor to drive the rack and pinion pair feed, and the Z axis uses AC servo
The motor drives the ball screw to feed. Servo motors, screw rods, guide rails, reducers, gears, and racks are all imported from well-known brands.
1. AHL-FB3015-500 uses top-notch fiber lasers, with high photoelectric conversion efficiency, stable performance, and the service life of key components up to 100,000 hours.
2. Very low maintenance cost: no laser working gas; optical fiber transmission, no need for reflective lenses, which can save a lot of maintenance costs.
3. The laser generation process does not require gas, air-assisted cutting, optical fiber transmission, and no need to adjust the optical path.
4. The laser is transmitted by optical fiber, no reflective lens is needed, which can save a lot of maintenance costs
5. Compared with other medium laser equipment, the fiber optic machine has a smaller focused spot, higher working efficiency and better processing quality.
Technical index | Technical parameter |
Laser wavelength | 1064nm |
Max laser power | 500W |
Pulse frequency | 1-500HzContinuously adjustable |
Positioning | Red light indicator |
Effective processing area | 1500mm*3000mm |
X/Y axis repeat positioning accuracy | ±0.03mm |
X, Y motion positioning accuracy | 0.02/m |
Maximum cutting thickness of stainless steel | ≤5mm |
Idle fast moving speed | 70m/min |
Minimum cut | 0.06mm |
Support graphics format | Supports graphics data formats such as AI, DXF, PLT, Gerber, and accepts international standard G codes generated by software such as Mater Cam, Type3, and Wentai |
Power consumption | ≤7KW |
Electricity demand | Three-phase four-wire AC 380V/50Hz/60A |
Overall dimensions of the host (L*W*H) | 4250*1700*1560mm |
