CO2 Laser Marking Machine


Product Introduction:
1. Aohua Laser: imported from the United States, stable output, low failure rate, life up to 25000 hours, very low use and maintenance costs.
2. Control computer: industrial control computer (IPC) is used to ensure long-term stable operation of industrial equipment in the industrial environment, which is not easy to crash.
3. Control software: strong function, with graphic alignment, layered setting parameters and red light position preview function. Graphic calculation is accurate.
Product Application:

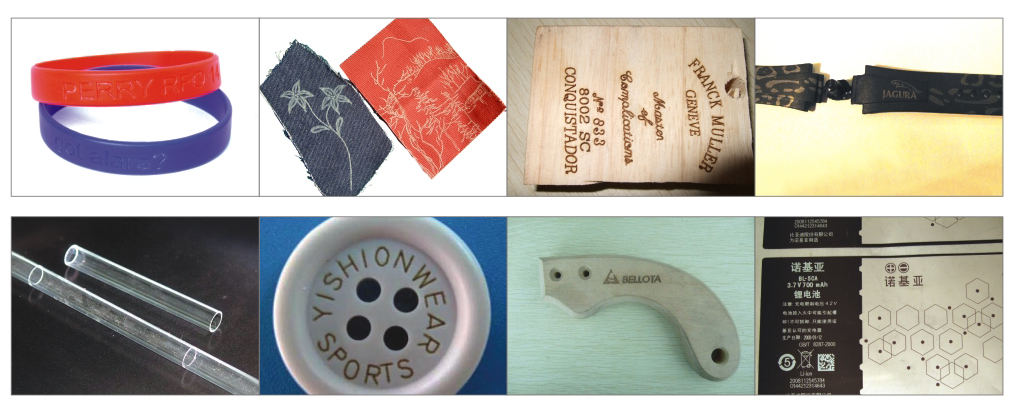

1. Aohua laser widely used in wood marking, food marking, packaging marking, craft gifts, electronic components, clothing, leather, paper and other industries.

2. It is suitable for wood, paper, PVC, ABS, EP, acrylic, leather, glass, unsaturated polyester, etc.

CO2 Laser Marking Machine

Product Advantages:

1. Aohua Laser: imported from the United States, stable output, low failure rate, life up to 25000 hours, very low use and maintenance costs.

2. Control computer: industrial control computer (IPC) is used to ensure long-term stable operation of industrial equipment in the industrial environment, which is not easy to crash.

3. Control software: strong function, with graphic alignment, layered setting parameters and red light position preview function. Graphic calculation is accurate. It can mark all kinds of bar codes and graphic codes, and has the function of anti printing.

4. Cooling system: two ways of optimized air cooling and water cooling are adopted to enhance the service life of laser tube and facilitate operation and use.


Technical Parameter:
ModelAHL-CO2-10WAHL-CO2-30WAHL-CO2-50WAHL-CO2-100W
Max laser power
10W30W50W100W
Laser wavelength
10.64um10.64um10.64um10.64um
Repeatition frequency≤50KHz≤50KHz≤50KHz≤50KHz
Marking range
100mm*100mm100mm*100mm100mm*100mm100mm*100mm
Optional engraving range

150mm*150mm

200mm*200mm

300mm*300mm

400mm*400mm

Engraving depth ≤3mm≤5mm≤7mm≤10mm
Engravinng linear speed
≤7000mm/s≤7000mm/s≤7000mm/s≤7000mm/s
Minmum leaner width 0.1mm0.1mm0.15mm0.15mm
Minmum charactor
0.4mm0.4mm0.4mm0.4mm
Repeatition accuracy ±0.01mm±0.01mm±0.01mm±0.01mm
Power consumption
≤300W≤1.2KW≤2KW≤4KW
Electric demand 200V±10%/50Hz/10A200V±10%/50Hz/10A200V±10%/50Hz/30A200V±10%/50Hz/30A
Cooling style Air CoolingAir CoolingWater CoolingWater Cooling
Optical path system
1200mm*430mm*1200mm
Control system 560mm*660mm*1000mm
